Product features:
- Full clear span underneath for unobstructed access for lifts and assisting devices
- Each pivot has hardened steel to increase the life of the bed
- Soft non-marking bumpers to protect from wall damage
- Box tubular steel is light weight and maximizes frame strength, making this a more heavy – duty frame
- The grid deck allows for ventilation under mattress to prevent moisture build up
- Easy storage and transport, the EX 8000 can be disassembled in minutes and transported in tight areas

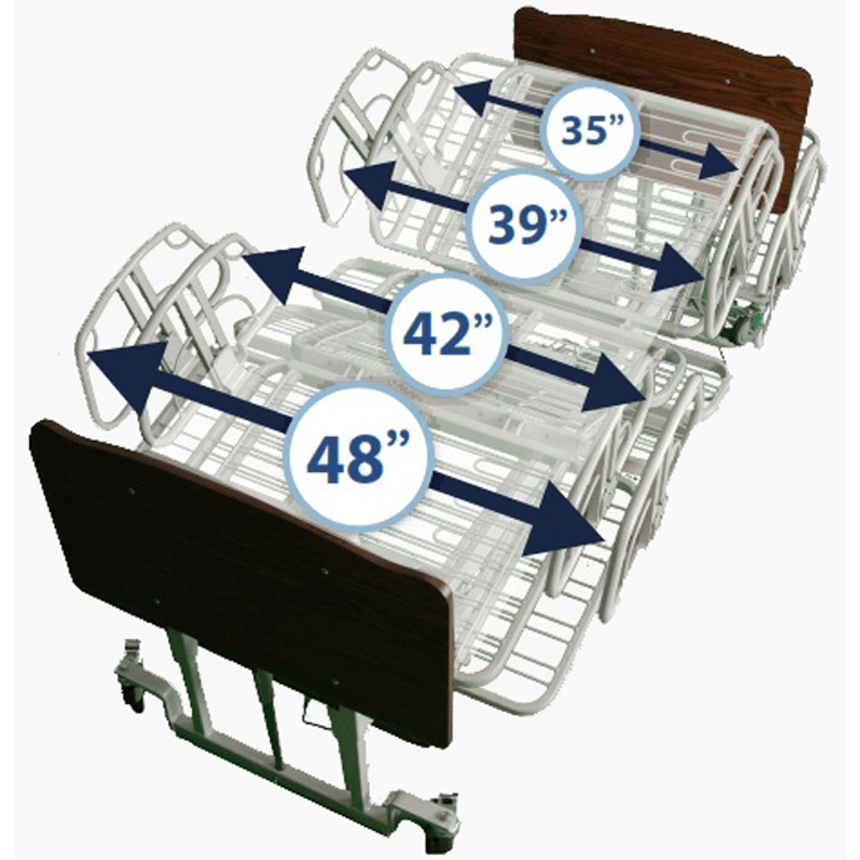

- The EX8000 has an expandable width up to 48” without the use of tools for more comfort and flexibility

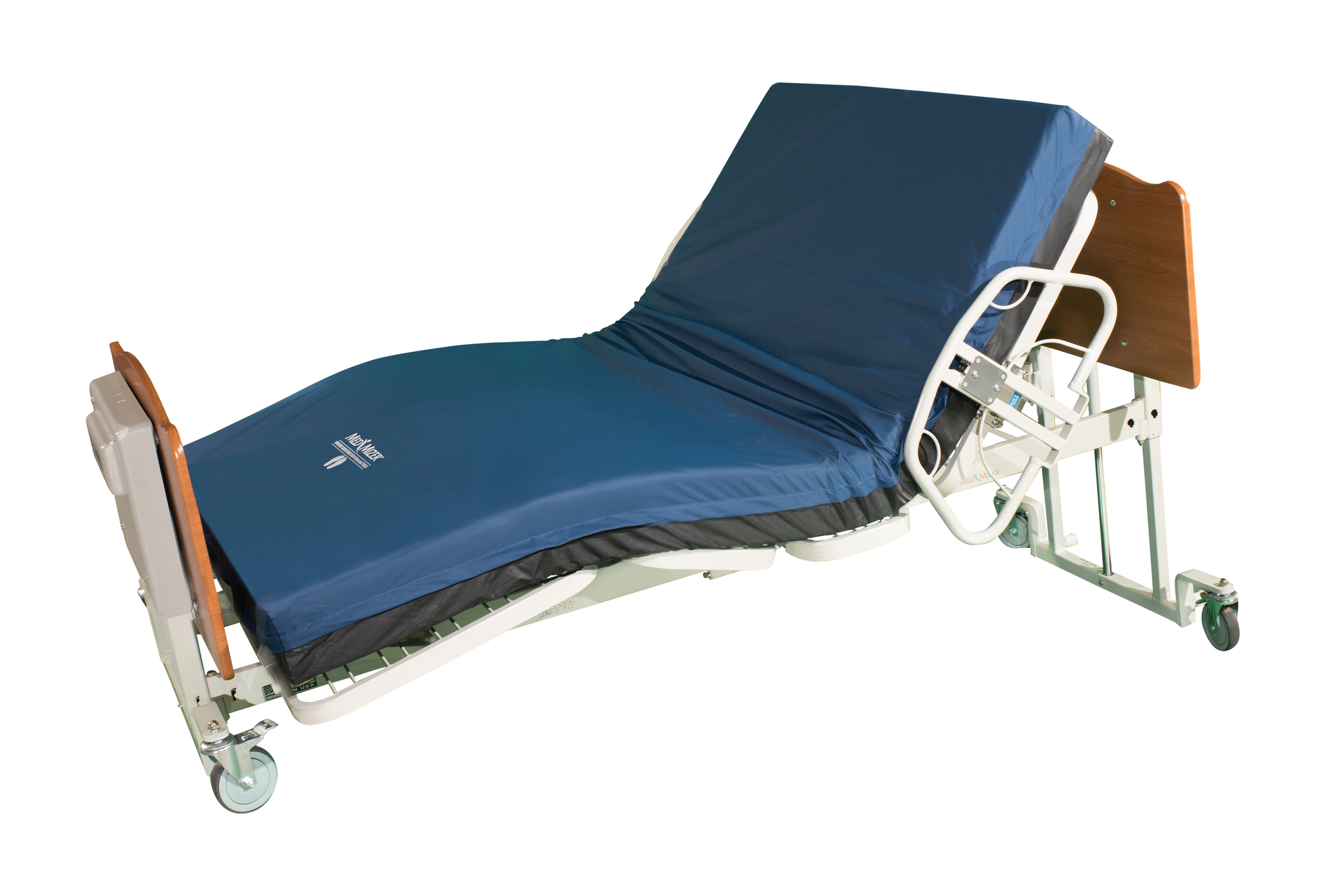

- Trendelenburg/ reverse Trendelenburg and cardiac chair positions can be quickly achieved with the 5-function handset
Product Specifications
| Deck Height |
Low- 9" High- 25" |
|---|---|
| Sleeping Surface |
35", 39", 42", 48" x 80" |
| Max weight Cap |
800 lbs / 363 kg |
| Max Back Angle |
63º |
| Max Knee Angle |
19º |
| Bed Frame Weight |
Foot Section lift- 42 lbs Head Section Lift – 42 lbs Head Section Sleep Surface- 94 lbs Foot Section Sleep Surface- 91 lbs |
